Product Summary
The M6117CA1 is a RF amplifier.
Parametrics
M6117CA1 absolute maximum ratings: (1)Ambient operating temperature: -55℃ to + 100℃; (2)Storage temperature: -62℃ to + 125℃; (3)Case temperature: + 125℃; (4)DC Voltage: + 18 V; (5)Continuous RF input power: + 13 dBm; (6)Short term RF input power: 50 Milliwatts (1 Minute Max.); (7)Maximum peak power: 0.5 Watt (3 μsec Max.).
Features
M6117CA1 features: (1)Low noise figure: <1.3 dB Typical; (2)Medium third order intercept: +28 dBm typical; (3)Operating temp. -55 ℃ to +85 ℃; (4)Environmental screening available.

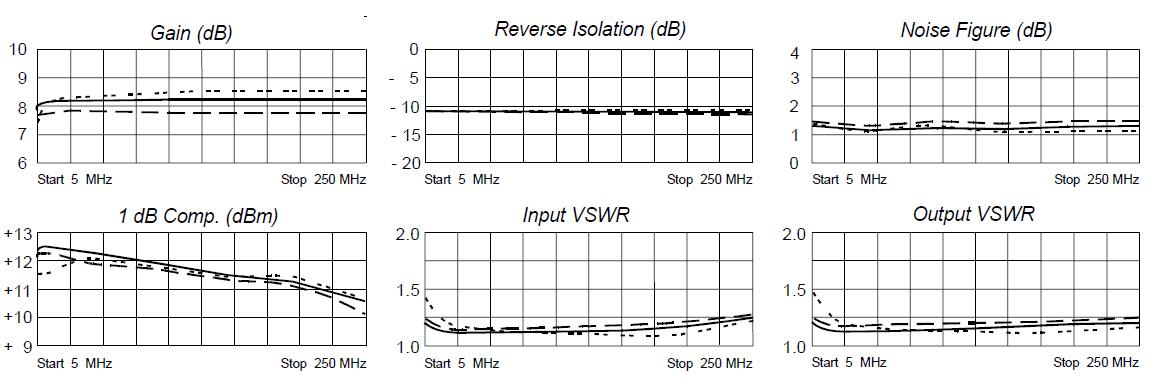

Diagrams
 |
