S5935QF

S5935QF, PCI controller, QFP, Applied Micro Circuits, 7.0V, 4mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~100.00

PartNumber:: S5935QF

Brand:: Applied Micro Circuits Corporation - AMCC | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Yolanda's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-10

From Other Seller

Part Number:S5935QF
US $1.00 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

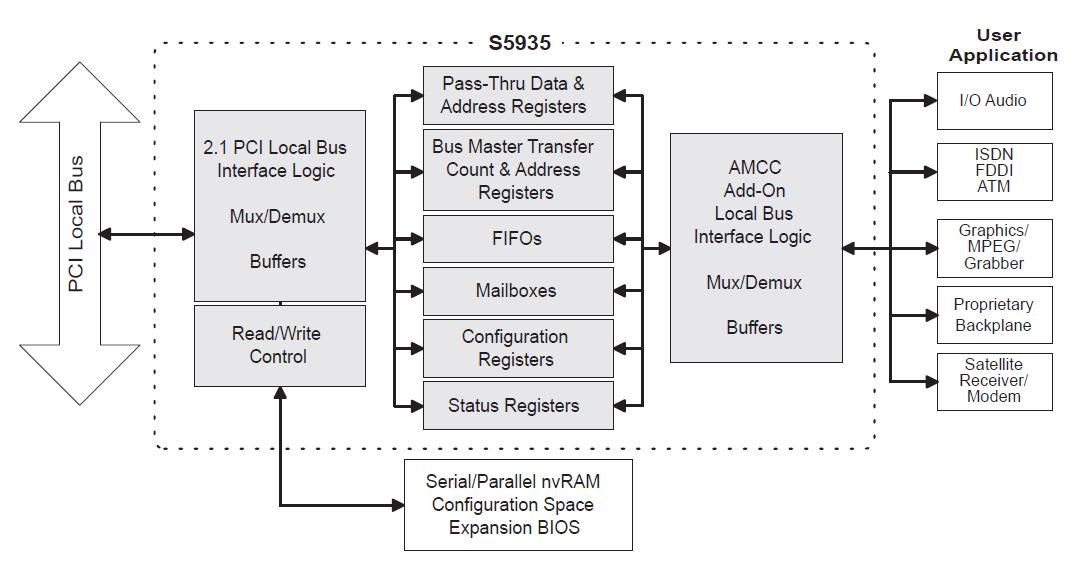

The S5935QF is a PCI controller. The PCI Local bus concept was developed to break the PC data I/O bottleneck and clearly opens the door to increasing system speed and expansion capabilities. The S5935QF moves high speed peripherals from the I/O bus and places them closer to the system’s processor bus, providing faster data transfers between the processor and peripherals. The PCI Local bus also addresses the industry’s need for a bus standard which is not directly dependent on the speed, size and type of system processor. It represents the first microprocessor independent bus offering performance more than adequate for the most demanding applications such as full-motion video. The applications of the S5935QF include high speed networking, digital video applications, I/O communications ports, high speed data input/output, multimedia communications memory interfaces, high speed data acquisition, data encryption/decryption, intel i960 interface, general purpose pci interfacing, existent S5933 design upgrades.

Parametrics

S5935QF absolute maximum ratings: (1)Storage temperature: -55 to 125℃; (2)Supply voltage (V CC): -0.3 to 7.0V; (3)Input pin voltage: -0.5 V to CC + 5.0V; (4)Power dissipation: 1.05 Watts @ 33 MHz.

Features

S5935QF features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 & 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status; (11)Direct Mail Box Data Strobe/Interrupts; (12)Direct PCI & Add-On Interrupt Pins; (13)Optional Non-Volatile Memory Boot Loading; (14)Optional Expansion BIOS/POST Code.
