Product Summary
The TLP281-4 is a very small and thin coupler,suitable for surface mount assembly in applications such as PCMCIA Fax modem, programmable controllers. The TLP281-4 consists of photo transistor,optically coupled to a gallium arsenide infrared emitting diode.
Parametrics
TLP281-4 absolute maximum ratings: (1)Forward current, IF: 50 mA; (2)Forward current derating, ΔIF /℃: -0.5 (Ta≥25℃) mA /℃; (3)Pulse forward current, IFP: 1A; (4)Reverse voltage, VR: 5V; (5)Junction temperature, Tj: 125℃; (6)Collector-emitter voltage, VCEO: 80 V; (7)Emitter-collector voltage, VECO: 7 V; (8)Collector current, IC: 50 mA; (9)Collector power dissipation (1 Circuit), PC: 100 mW; (10)Collector power dissipation derating(Ta≥25℃) (1 Circuit), ΔPC /℃: -1.0 mW /℃; (11)Junction temperature, Tj: 125℃; (12)Operating temperature range, Topr: -55~100℃; (13)Storage temperature range, Tstg: -55~125℃; (14)Lead soldering temperature, Tsol: 260 (10s)℃; (15)Total package power dissipation (1 Circuit), PT: 170 mW; (16)Total package power dissipation derating (Ta≥25℃) (1 Circuit), ΔPT /℃: -1.7 mW /℃; (17)Isolation voltage, BVS: 2500(AC,1min,R.H.≤60%) Vrms.
Features
TLP281-4 features: (1)Collector-Emitter Voltage: 80 V (MIN); (2)Current Transfer Ratio: 50% (MIN): Rank GB: 100% (MIN); (3)Isolation Voltage: 2500 Vrms (MIN); (4)UL Recognized: UL1577 , File No. E67349; (5)BSI Approved: BS EN 60065: 1994; BS EN 41003: 1997; Certificate No. 8143, 8144.

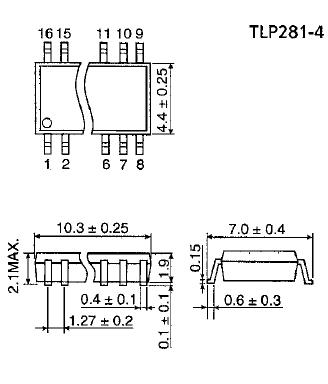

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP281-4 |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms 4 channels |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
TLP281-4(GB) |
|
PHOTOCPLR QUAD TRANS-OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(GB,J,F) |
Toshiba |
Transistor Output Optocouplers Photocouplr AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(GB,TP,J,F) |
|
PHOTOCPLR QUAD TRANS-OUT 16-SOP |
Data Sheet |
|
|
||||||||||||||||||
|
TLP281-4(GB-TP) |
|
PHOTOCPLR QUAD TRANS-OUT 16-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(GB-TP,J,F |
Toshiba |
Transistor Output Optocouplers 80Vceo 2500Vrms 4 channels |
Data Sheet |
|
|
||||||||||||||||||
|
TLP281-4(GB-TP,J,FX) |
Toshiba |
Transistor Output Optocouplers AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TLP281-4(TP,J,F) |
Toshiba |
Transistor Output Optocouplers Photocouplr AC TOOLS 1.27mm LEAD PITCH |
Data Sheet |
Negotiable |
|
||||||||||||||||||
