Product Summary
The IRU1205CLTR device is an efficient linear voltage regulator with better than 1% initial voltage accuracy, very low dropout voltage and very low ground current designedespecially for hand held, battery powered applications. Other features of the device are: TTL compatible enable/shutdown control input, current limiting and thermal shut-down. The IRU1205CLTR is available in fixed and adjustable outputvoltage versions in a small SOT-23 5-Pin package. Applications include Laptop, Notebook & Palmtop computers, Battery Powered Equipments, PCMCIA Vcc & Vpp Regulator, Consumer Electronics and High Efficiency Linear Power Supplies.
Parametrics
IRU1205CLTR absolute maximum ratings: (1)Input Voltage (VIN): 10V; (2)Enable Input Voltage: 10V; (3)Storage Temperature Range: -65℃ To 150℃; (4)Operating Junction Temperature Range: 0℃ To 150℃.
Features
IRU1205CLTR features: (1)SOT-23 Package; (2)Stable with 2.2mF Ceramic Capacitor; (3)1% Voltage Reference Accuracy; (4)Only 270mV Dropout at 300mA and 170mV Dropout at 150mA; (5)5mA Quiescent Current in Shutdown; (6)Current Limit and Thermal Shutdown; (7)Logic Input Enable Pin.

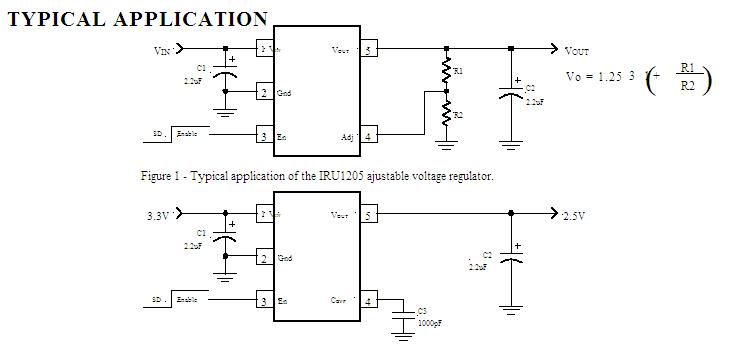

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRU1205CLTR |
|
IC REG LDO ADJ .3A SOT-23-5 |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
IRU1010 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
IRU1010-18 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
IRU1010-18CD |
|
IC REG LDO 1.8V 1A D-PAK |
Data Sheet |
Negotiable |
|
||||
|
IRU1010-18CDTR |
|
IC REG LDO 1.8V 1A D-PAK |
Data Sheet |
Negotiable |
|
||||
 |
IRU1010-18CP |
|
IC REG LDO 1.8V 1A 2-UTHINPAK |
Data Sheet |
Negotiable |
|
||||
|
IRU1010-18CPTR |
|
IC REG LDO 1.8V 1A 2-UTHINPAK |
Data Sheet |
Negotiable |
|
||||
