Product Summary
The S5920Q is a 32-bit PCI bus target interface. The device is developed to provide the designer with a single multi-function device offering a flexible and easy means to connect applications to the PCI local bus. The S5920Q converts complex PCI signals into an easy-to-use 8-, 16- or 32-bit user bus referred to as the add-on local bus. The applications of the S5920Q include ISA to PCI local bus conversions, I/O communications ports, high speed data output, general purpose PCI interfacing, data communications, memory interfaces, data acquisition.
Parametrics
S5920Q absolute maximum ratings: (1)supply voltage range, VCC core: -0.3V to 7.0V; (2)input pin voltage range: -0.5V to VCC+0.5V; (3)storage temperature range: -55 to 125℃; (4)operating ambient temperature range: 0 to 70℃; (5)virtual junction temperature: 150℃; (6)soldering lead temperature: 300℃ 10seconds.
Features
S5920Q features: (1)PCI 2.2 compliant target/slave device; (2)full 132Mbytes/sec transfer rate; (3)PCI bus operation DC to 33MHz; (4)add-on bus 8MHz to 40MHz; (5)programmable prefetch and wait states; (6)8/16/32 bit add-on user bus; (7)four definable pass-thru regious; (8)32 byte burstable PCI bus FIFO; (9)active/passive add-on bus operation; (10)mail box registers w/byte level status; (11)direct mail box data strobe/interrupt pin; (12)mail box read/write interrupts; (13)direct PCI & Add-On interrupt pins.

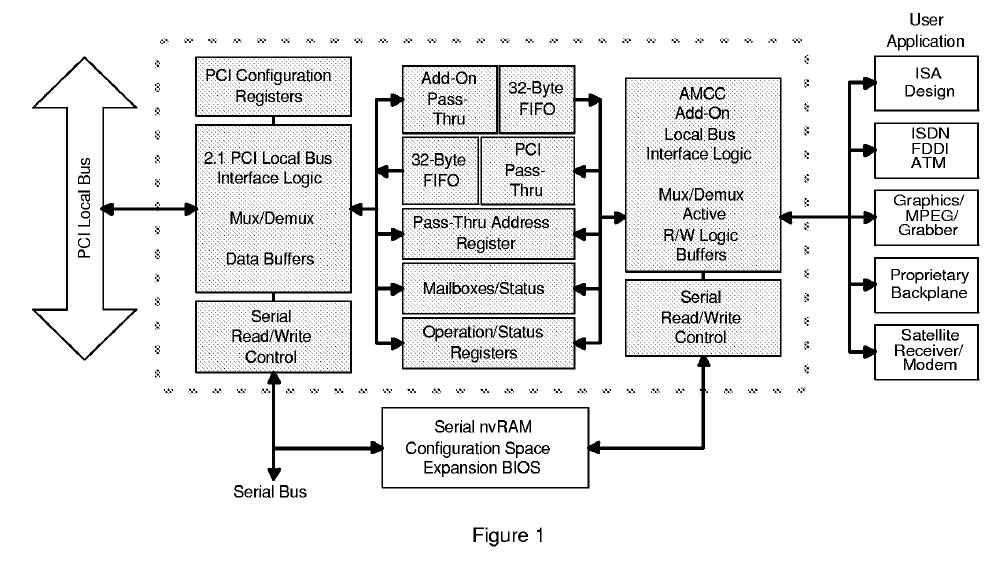

Diagrams
 |
