Product Summary

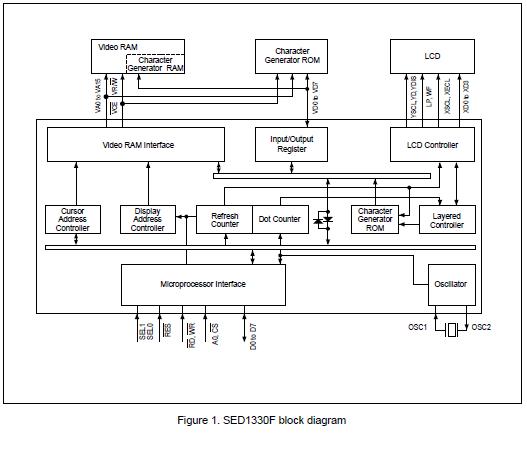

The SED1330FBA is a versatile LCD controller IC that can display text and graphics on a medium size LCD panel. The SED1330FBA can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens.The SED1330FBA has an internal character generator with 160, 5 × 7 pixel characters in internal mask ROM. The character generators support up to 64, 8 × 16 pixel characters in external character generator RAM and up to 256, 8 × 16 pixel characters in external character generator ROM.

Parametrics

SED1330FBA absolute maximum ratings: (1)Supply voltage range, VDD: –0.3 to 7.0 V; (2)Input voltage range, VIN: –0.5 to VDD + 0.5 V; (3)Power dissipation, PD: 300 mW; (4)Operating temperature range, Topr: –20 to 75℃; (5)Storage temperature range, Tstg: –65 to 150℃; (6)Soldering temperature (10 seconds), Tsolder: 260℃.

Features

SED1330FBA features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)640 × 256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)1/2-duty to 1/256-duty LCD drive; (7)Up to 64 Kbytes of external static RAM frame buffer memory; (8)Internal character generator; (9)160, 5 × 7 pixel characters in internal maskprogrammed character generator ROM; (10)Up to 64, 8 × 16 pixel characters in external character generator RAM; (11)Up to 256, 8 × 16 pixel characters in external character generator ROM; (12)6800 and 8080 family microprocessor interfaces.
