Product Summary
The TDA1519CL is an integrated class-B dual output amplifier in a 9-lead plastic single in-line (SIL) power or 20-lead heatsink small outline package. For the TDA1519CL (SOT418-2) the heatsink is positioned on top of the package, thereby allowing an external heatsink to be mounted on top.
Parametrics
TDA1519CL absolute maximum ratings: (1)VP supply voltage: -17.5 V; (2)non-operating: 30 V; (3)load dump protected; during 50 ms; tr ≥ 2.5 ms: 45 V; (4)Vsc AC and DC short-circuit-safe voltage: 17.5 V; (5)Vrp reverse polarity voltage: 6 V; (6)energy handling capability at outputs VP = 0 V: 200 mJ; (7)IOSM non-repetitive peak output current: 6 A; (8)IORM repetitive peak output current: 4 A; (9)Ptot total power dissipation see Fig.5: 25 W; (10)Tj junction temperature: 150 ℃; (11)Tstg storage temperature: -55 +150 ℃.
Features
TDA1519CL features: (1)Requires very few external components for Bridge-Tied Load (BTL); (2)Stereo or BTL application; (3)High output power; (4)Low offset voltage at output (important for BTL); (5)Fixed gain; (6)Good ripple rejection; (7)Mute/standby switch; (8)Load dump protection; (9)AC and DC short-circuit-safe to ground and VP; (10)Thermally protected; (11)Reverse polarity safe; (12)Capability to handle high energy on outputs (VP = 0 V); (13)No switch-on/switch-off plop; (14)Protected against electrostatic discharge; (15)Low thermal resistance; (16)Identical inputs (inverting and non-inverting); (17)Pin compatible with TDA1519B (TDA1519C and TDA1519CSP).

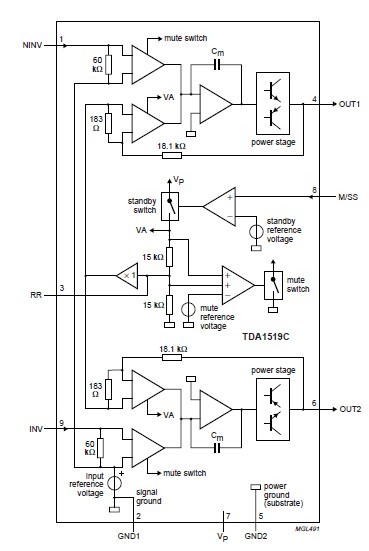

Diagrams
 |
