Product Summary

The BAT54L is a Schottky barrier diode. Applications include Ultra high-speed switching, Voltage clamping, Protection circuits, Mobile communication, digital (still) cameras, PDAs and PCMCIA cards.

Parametrics

BAT54L absolute maximum ratings: (1)continuous reverse voltage: 30 V; (2)continuous forward current: 200 mA; (3)repetitive peak forward current: 300 mA; (4)non-repetitive peak forward current tp < 10 ms: 600 mA; (5)total power dissipation: 250 mW; (6)storage temperature: -65 +150℃; (7)junction temperature: 150℃.

Features

BAT54L features: (1)Low forward voltage; (2)Leadless ultra small plastic package (1 mm*0.6 mm*0.5 mm); (3)Boardspace 1.17 mm2 (approx. 10% of SOT23); (4)Power dissipation comparable to SOT23.

Diagrams

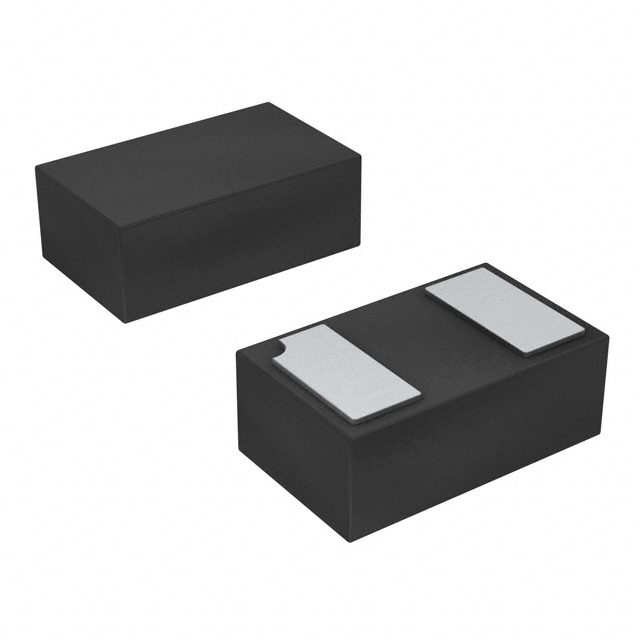

BAT54L PACKAGE OUTLINE

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAT54LP
BAT54LP
Other

Data Sheet
Negotiable
BAT54LP-7
BAT54LP-7
Diodes Inc.
Schottky (Diodes & Rectifiers) 30V 200mA
Data Sheet
0-1: $0.31
1-10: $0.22
10-100: $0.14
100-250: $0.10
BAT54LPS
BAT54LPS
Other

Data Sheet
Negotiable
BAT54LPS-7
BAT54LPS-7
Diodes Inc.
Schottky (Diodes & Rectifiers) 250MW 30V
Data Sheet
0-1: $0.40
1-10: $0.31
10-100: $0.24
100-250: $0.21
BAT54LT1
BAT54LT1
ON Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mW Single
Data Sheet
Negotiable
BAT54LT1G
BAT54LT1G
ON Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mW Single
Data Sheet
0-1: $0.14
1-25: $0.11
25-100: $0.08
100-500: $0.04
BAT54L,315
BAT54L,315
NXP Semiconductors
Schottky (Diodes & Rectifiers) DIODE SCHOTTKY TAPE-7
Data Sheet
0-1: $0.04
1-25: $0.03
25-100: $0.03
100-250: $0.03
