Product Summary

The CXA1229P is a NTSC/PAL encoder. It is used to convert Y, R-Y, B-Y signals into composite video or RGB signals. The composite sync can be separated from the incoming luminous of the signal, as well as the external sync.

Parametrics

CXA1229P absolute maximum ratings: (1)Supply voltage VCC: 10V; (2)Operating temperature Topr: -20 to +75℃; (3)Storage temperature Tstg: -55 to +150℃; (4)Allowable power dissipation PD: 1250mW.

Features

CXA1229P features: (1)Single power supply 5V; (2)Low power consumption (130mW); (3)Compatible with both NTSC and PAL mode; (4)Built-in 75Ω driver(RGB output, composite video output, composite sync output); (5)Built-in crystal oscillator for subcarrier; (6)External subcarrier input possible; (7)Audio buffer.

Diagrams

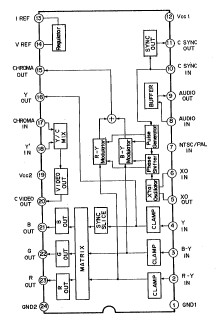

CXA1229P diagram
