Product Summary
The EP1C12F256C8N is a field programmable gate array. The device is based on a 1.5-V, 0.13-μm, all-layer copper SRAM process, with densities up to 20,060 logic elements (LEs) and up to 288 Kbits of RAM. With features like phase-locked loops (PLLs) for clocking and a dedicated double data rate (DDR) interface to meet DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, the EP1C12F256C8N is a cost-effective solution for data-path applications. The EP1C12F256C8N supports various I/O standards, including LVDS at data rates up to 640 megabits per second (Mbps), and 66- and 33-MHz, 64- and 32-bit peripheral component interconnect (PCI), for interfacing with and supporting ASSP and ASIC devices.
Parametrics
EP1C12F256C8N absolute maximum ratings: (1)Device Logic Units: 12060; (2)Maximum Internal Frequency: 275.03 MHz; (3)Typical Operating Supply Voltage: 1.5 V; (4)Maximum Number of User I/Os: 185; (5)RAM Bits: 239616; (6)In System Programmability: Yes; (7)Operating Temperature: 0 to 85℃; (8)Speed Grade: 8.
Features
EP1C12F256C8N features: (1)2,910 to 20,060 LEs; (2)Up to 294,912 RAM bits (36,864 bytes); (3)Supports configuration through low-cost serial configuration device; (4)Support for LVTTL, LVCMOS, SSTL-2, and SSTL-3 I/O standards; (5)Support for 66- and 33-MHz, 64- and 32-bit PCI standard; (6)High-speed (640 Mbps) LVDS I/O support; (7)Low-speed (311 Mbps) LVDS I/O support; (8)311-Mbps RSDS I/O support; (9)Up to two PLLs per device provide clock multiplication and phase; (10)shifting; (11)Up to eight global clock lines with six clock resources available per; (12)logic array block (LAB) row; (13)Support for external memory, including DDR SDRAM (133 MHz),; (14)FCRAM, and single data rate (SDR) SDRAM.

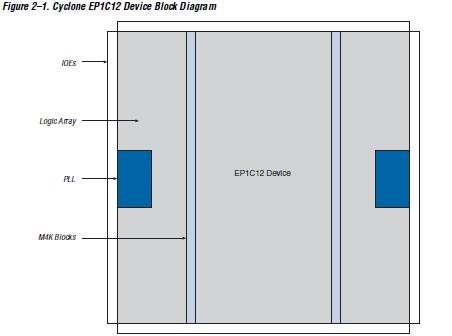

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1C12F256C8N |
|
IC CYCLONE FPGA 12K LE 256-FBGA |
Data Sheet |
|
|
||||||
