Product Summary
The RF2360 is a general purpose, low-cost, high-linearity RF amplifier IC. The device is manufactured on a Gallium Arsenide process and is featured in an SOP-16 batwing package. The RF2360 has been designed for use as an easily cascadable 75Ω gain block with a Noise Figure of less than 2dB. Gain flatness better than 0.5dB from 5MHz to 1000MHz, and high linearity make this part ideal for cable TV applications. Other applications of the RF2360 include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 1000MHz.
Parametrics
RF2360 absolute maximum ratings: (1)Device Current: 175 mA; (2)Device Voltage: 9 V; (3)Input RF Power: +13 dBm; (4)Output Load VSWR: 20:1; (5)Ambient Operating Temperature: -40 to +85 ℃; (6)Storage Temperature: -40 to +150 ℃.
Features
RF2360 features: (1)5MHz to 1500MHz Operation; (2)Internally Matched Input and Output; (3)20dB Small Signal Gain; (4)1.2dB Noise Figure; (5)+24dBm Output Power; (6)Single 6V to 9V Positive Power Supply.

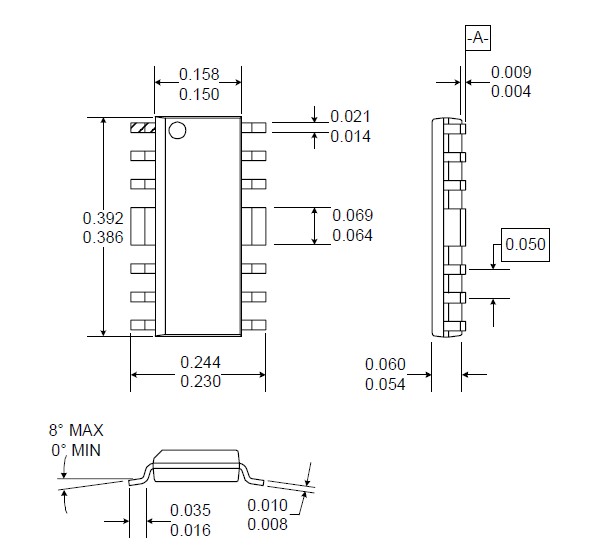

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 RF2360PCK-50OHM |
|
KIT EVAL FOR RF2360 50OHM |
Data Sheet |
Negotiable |
|
||||
 |
RF2360TR7 |
|
IC AMP MESFET GAAS CATV 16-SOP |
Data Sheet |
Negotiable |
|
||||
 |
RF2360 |
Other |
|
Data Sheet |
Negotiable |
|
||||
