Product Summary
The LM317MQDCYRG4 is an adjustable 3-terminal positive voltage regulator. The LM317MQDCYRG4 is capable of supplying in excess of 1.5A over a 1.2V to 37V output range. LM317MQDCYRG4 is exceptionally easy to use and require only two external resistors to set the output voltage. Further, both line and load regulation are better than standard fixed regulators.
Parametrics
LM317MQDCYRG4 absolute maximum ratings: (1)VI – VO Input-to-output differential voltage: 40 V; (2)TJ Operating virtual junction temperature: 150 ℃; (3)Lead temperature (within 5 mils of the plastic body for 10 s)KTP, DCY packages: 260 ℃; (4)Tstg Storage temperature range: –65 to 150 ℃.
Features
LM317MQDCYRG4 features: (1)Guaranteed 1% output voltage tolerance; (2)Guaranteed max. 0.01%/V line regulation; (3)Guaranteed 1.5A output current; (4)Adjustable output down to 1.2V; (5)Current limit constant with temperature; (6)P+ Product Enhancement tested; (7)80 dB ripple rejection; (8)Output is short-circuit protected.

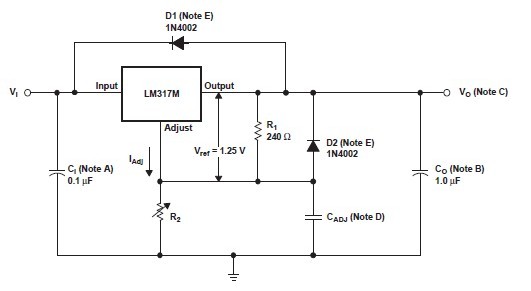

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM317MQDCYRG4 |
Texas Instruments |
Linear Regulators - Standard 4 Pin 500mA Adj Pos Vltg Reg |
Data Sheet |
|
|
||||||||||||
