Product Summary
The XC9572XL-10VQG44C is a 3.3V CPLD targeted for high-perfor-mance, low-voltage applications in leading-edge communications and computing systems. The XC9572XL-10VQG44C is comprised of four 54V18 Function Blocks, providing 1,600 usable gates withpropagation delays of 5 ns.
Parametrics
XC9572XL-10VQG44C absolute maximum ratings: (1)Supply voltage relative to GND:–0.5 to 4.0V; (2)Input voltage relative to GND(1):–0.5 to 5.5V; (3)Voltage applied to 3-state output(1): –0.5 to 5.5V; (4)Storage temperature (ambient)(3): –65 to +150℃; (5)Junction temperature: +150℃.
Features
XC9572XL-10VQG44C features: (1)5 ns pin-to-pin logic delays; (2)System frequency up to 178 MHz; (3)72 macrocells with 1,600 usable gates; (4)Available in small footprint packages; (5)Optimized for high-performance 3.3V systems; (6)Fast concurrent programming; (7)Slew rate control on individual outputs; (8)Enhanced data security features; (9)Excellent quality and reliability.

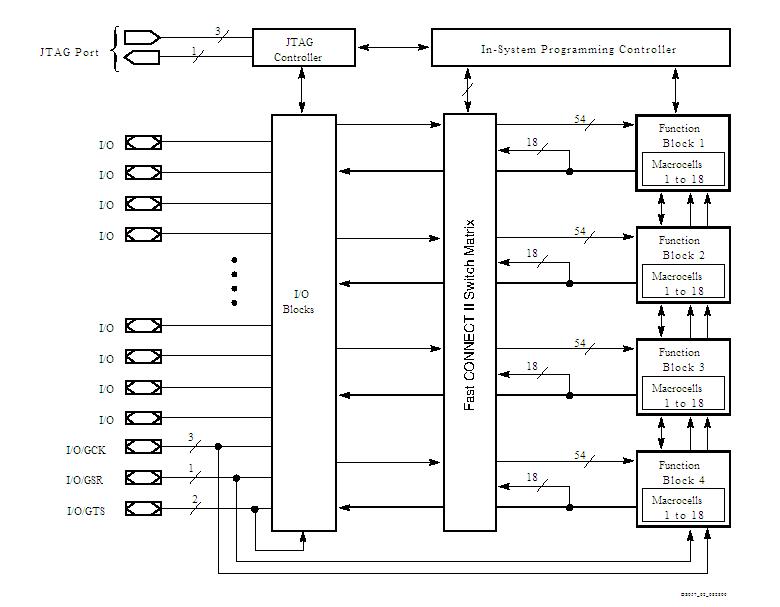

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC9572XL-10VQG44C |
|
IC CPLD 72MCRCELL 10NS 44VQFP |
