Product Summary

The MAX9718AETB is a differential input audio power amplifier. It is ideal for the portable audio device with internal speaker. The differential input structure of the MAX9718AETB improves noise rejection and provides common-mode rejection. A bridge-tied load (BTL) architecture minimizes external component count, while providing highquality, power audio amplification. The MAX9718AETB is a single-channel amplifier. The MAX9718AETB is available as adjustable gain amplifier or with internally fixed gains of 0dB, 3dB, and 6dB to reduce component count. The applications of the device include Mobile Phones, PDAs and Portable Devices.

Parametrics

MAX9718AETB absolute maximum ratings: (1)Operating Temperature Range: -40℃ to +85℃; (2)Junction Temperature: +150℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Bump Temperature (soldering)Reflow: +235℃; (5)Lead Temperature (soldering, 10s): +300℃.

Features

MAX9718AETB features: (1)2.7V to 5.5V Single-Supply Operation; (2)Very High -93dB PSRR at 217Hz; (3)1.4W into 4Ω at 1% THD+N (per Channel); (4)Differential Input; (5)Internal Fixed Gain to Reduce Component Count; (6)Adjustable Gain Option (MAX9718A/MAX9719A); (7)100nA Low-Power Shutdown Mode; (8)No Audible Clicks or Pops at Power-Up/Down; (9)Improved Performance Pin-Compatible.

Diagrams

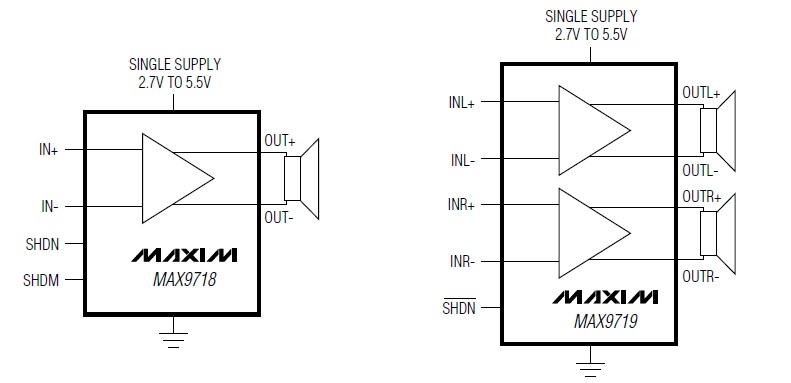

MAX9718AETB block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX9718AETB+T
MAX9718AETB+T
Maxim Integrated Products
Audio Amplifiers Mono/Stereo 1.4W BTL Audio Power Amp
Data Sheet
0-1: $0.56
1-25: $0.42
25-50: $0.38
50-100: $0.37
