Product Summary

The SKM100GB128D is a fast IGBT4 Module. The typical applications of the device include AC inverter drives, UPS and Electronic welders at fsw up to 20 kHz.

Parametrics

SKM100GB12T4 absolute maximum ratings: (1)VCES: 1200V; (2)Ic, Tj=175℃: 160A; (3)ICRM, ICRM=3XIcnom: 300A; (4)VGES: ±20V; (5)tpsc, VCC=800V, Tj=150℃: 10μs.

Features

SKM100GB12T4 features: (1)IGBT4 = 4. Generation (Trench)IGBT; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6 x ICNOM; (4)Soft switching 4. Generation CAL diode (CAL4).

Diagrams

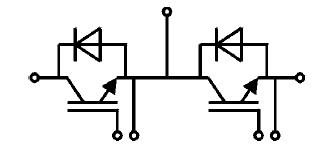

SKM100GB12T4 circuit
